Semi-Automatic 2-Nozzle Bottle Rinser (Without Electric Pump)

💧 Semi-Automatic 2-Nozzle Bottle Rinser (Without Electric Pump)

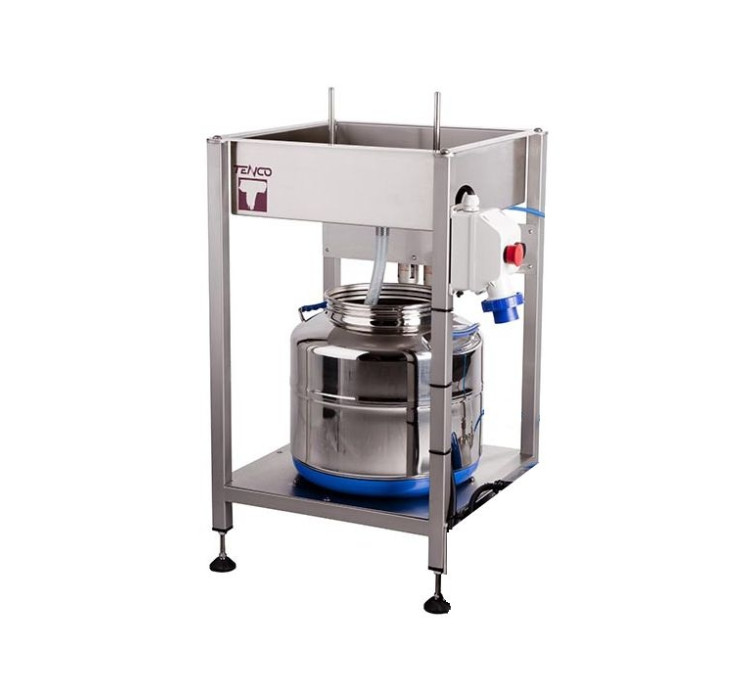

The Semi-Automatic 2-Nozzle Bottle Rinser (Without Electric Pump) is designed for rinsing and sanitising the inside of bottles, jars and other containers before filling. It operates through a direct water supply connection, providing a fast, simple and efficient cleaning process without the need for an electric recirculation pump.

Thanks to its two rinsing nozzles, it can process up to 300 bottles per hour, depending on the container size and the operator's working speed. It is an ideal solution for wineries, breweries, distilleries and small beverage producers.

🚰 Direct water connection

This bottle rinser operates by connecting directly to the water supply, eliminating the need for an electric pump. Its simple design reduces maintenance requirements and makes installation quick and easy.

The stainless steel tank serves as the reservoir for the sanitising solution, allowing bottles and containers to be rinsed or sanitised conveniently and efficiently.

When working with alcoholic beverages or using ethyl alcohol for cleaning or sanitising bottles, the use of a pneumatic pump is recommended to ensure proper application of the sanitising solution.

🍾 Suitable for different container sizes

The standard nozzles are suitable for bottles and jars with an internal neck diameter between 12 and 26 mm and a minimum container height of 150 mm.

When using plastic or PET containers, it is recommended to carry out a preliminary test with customer-supplied samples, as some low-density or lightweight containers may deform during the rinsing process.

Optional nozzles are also available to adapt the machine to other container formats.

✨ Why choose this bottle rinser?

• 💧 Fast and efficient rinsing and sanitising of bottles and jars before filling.
• 🚰 Direct connection to the water supply.
• ⚙️ No electric recirculation pump required.
• 🚀 Output of up to 300 bottles per hour.
• 🛡️ Stainless steel tank for sanitising solutions.
• 🍾 Suitable for a wide range of bottles and containers.
• 🏭 Ideal for wineries, breweries, distilleries and artisan beverage producers.

📋 Technical specifications

• Type: Semi-Automatic 2-Nozzle Bottle Rinser (Without Electric Pump).
• Output: Up to 300 bottles/hour (depending on the operator).
• Operation: Direct water supply connection.
• Tank: Stainless steel sanitising solution tank.
• Dimensions: 500 × 800 × 1,200 mm.
• Weight: 45 kg.
• Standard nozzle internal diameter: 12–26 mm.
• Minimum container height: 150 mm.

📦 Optional accessories

• ✔️ Mignon nozzles.
• ✔️ Jar nozzles.

💡 Thanks to its direct water supply operation, stainless steel sanitising tank and output of up to 300 bottles per hour, this Semi-Automatic 2-Nozzle Bottle Rinser (Without Electric Pump) provides a practical, fast and hygienic solution for rinsing and sanitising bottles and containers before filling.
