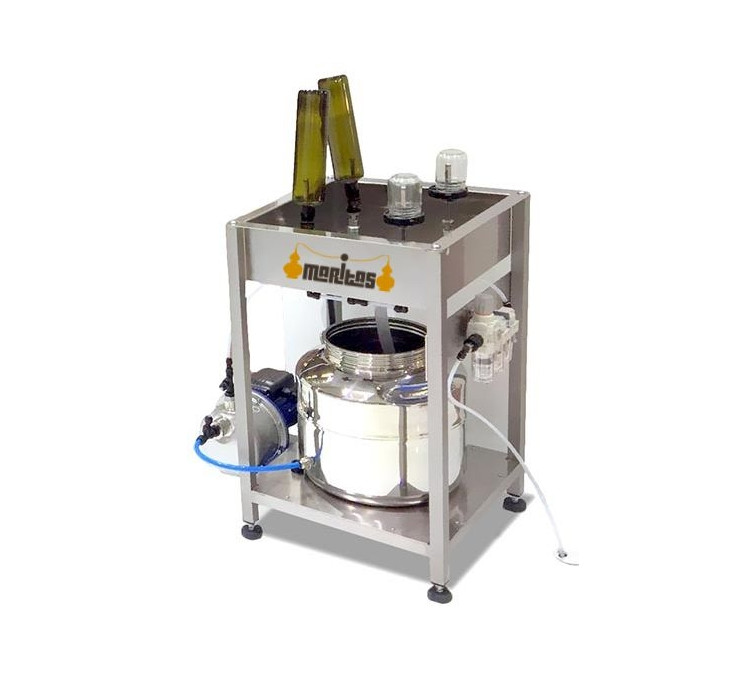

We present the semiautomatic blower-rinser with 4 injectors and 230V-50Hz pump, ideal for internal cleaning of bottles using air or filtered water and disinfectant product.
This machine has been made entirely of stainless steel and has 4 injectors, 2 for rinsing and 2 for blowing.
In addition, it is equipped with an air unit made up of 3 elements:
- Complete pressure regulator with 5 μm filter unit: allows you to adjust the air pressure sent to the injectors, a setting of 4-6 atm being recommended.
- Filter element (grinder) with 0.3 μm porosity: protects the regulator from any trace of oil or condensate present in the air supplied by the compressor.
- Filter element (extra fine) through a 0.01 μm cartridge.
The machine also has a tray in which you can fill water and, if desired, a disinfectant product.
This solution is pumped and sent under pressure to the bottles through nozzles.
Regarding its technical characteristics, we highlight:
- AISI 304 stainless steel structure and tank
- Dimensions: 490 x 490 x 900 mm
- Injectors: 2 for rinsing (stainless steel) and 2 for blowing (stainless steel)
- Power supply: 230V-50Hz single-phase
In short, this machine offers an integrated solution for rinsing and disinfecting jars and bottles before filling.
With its 4 injectors (2 water and 2 air) and its 230V-50Hz electric pump, it guarantees an efficient and quality process.
