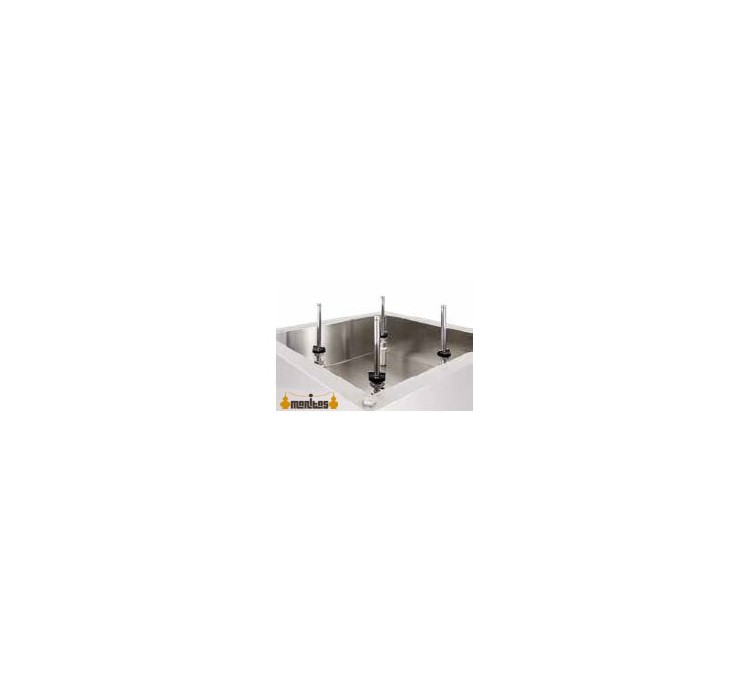

Semi-Automatic 4-Nozzle Bottle Air Rinser

💨 Semi-Automatic 4-Nozzle Bottle Air Rinser

The Semi-Automatic 4-Nozzle Bottle Air Rinser is designed to clean the inside of bottles, jars and containers before filling. It operates entirely using compressed air, effectively removing dust, particles and small impurities from the inside of containers quickly, hygienically and efficiently.

Thanks to its four air injection nozzles, it can process up to 600 bottles per hour, depending on the bottle size and the operator's working speed, making it an ideal solution for medium and high-capacity bottling lines.

⚙️ Pneumatic operation

The machine operates exclusively with compressed air. The air compressor is not included and must be purchased separately.

For optimum performance, we recommend using an oil-free air compressor with a minimum 50-litre air tank, at least 1.5 HP of power, preferably soundproofed and equipped with a condensate filter.

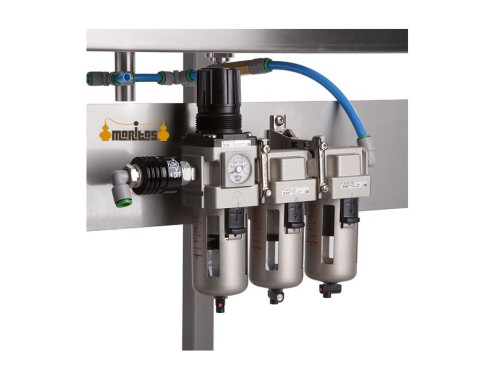

🛡️ Professional 4-stage air filtration system

The air rinser is equipped with a 4-stage air filtration system designed to provide clean air throughout the blowing process:

• 🔹 Coarse particle filter with pressure regulator.
• 🔹 Oil separator filter.
• 🔹 Condensate removal filter.
• 🔹 Activated carbon filter to eliminate residual odours.

This filtration system ensures clean compressed air, protecting the inside of containers before the filling process.

🍾 Suitable for different container sizes

The standard nozzles are suitable for bottles and jars with an internal neck diameter between 12 and 26 mm and a minimum container height of 150 mm.

Optional nozzles are also available to adapt the machine to other container formats.

✨ Why choose this bottle air rinser?

• 💨 Fast and efficient cleaning of bottles and jars before filling.
• ⚙️ Fully pneumatic operation.
• 🚀 Output of up to 600 bottles per hour.
• 🛡️ Professional 4-stage air filtration system.
• 🍾 Suitable for a wide range of bottle and container sizes.
• 🔧 Integrated pressure regulator.
• 🏭 Ideal for wineries, breweries, distilleries and artisan beverage producers.

📋 Technical specifications

• Type: Semi-Automatic 4-Nozzle Bottle Air Rinser.
• Output: Up to 600 bottles/hour (depending on the operator).
• Power source: Compressed air.
• Dimensions: 500 × 500 × 1,200 mm.
• Weight: 20–25 kg.
• Standard nozzle internal diameter: 12–26 mm.
• Minimum container height: 150 mm.
• Filtration system: 4 stages (particles, oil, condensate and activated carbon).

📦 Optional accessories

• ✔️ Mignon nozzles.
• ✔️ Jar nozzles.

💡 Thanks to its fully pneumatic operation, professional four-stage air filtration system and output of up to 600 bottles per hour, this semi-automatic 4-nozzle bottle air rinser provides a fast, safe and hygienic solution for cleaning bottles and containers before filling.
