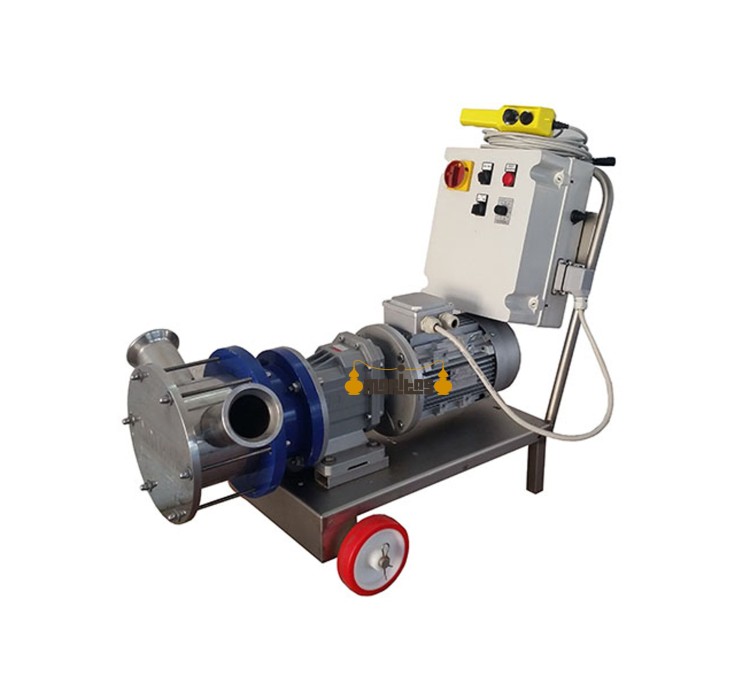

Pump with Electronic Inverter EURO 80

The Pump with Electronic Inverter EURO 80 with the electrical panel separated from the motor body, guarantees the safety of the electronic components and facilitates cleaning and maintenance operations.

Self-priming pump made entirely of AISI 304 stainless steel, connected to an electronic system equipped with an electronic inverter, which allows the pump rotation speed to be varied from 50 to 600 rpm.

The pump has an electric motor with gear reducer, without servo-ventilation.

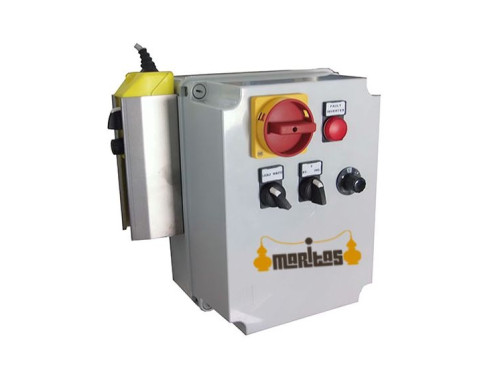

The electrical panel is supplied separate from the motor body, connected with quick connectors to guarantee the safety of the electronic components and facilitate cleaning and maintenance operations.

It includes as standard a remote control with a 15-metre cable, with the possibility of varying the speed, the direction of rotation and turning off the pump.

On request, it is possible to supply the trolley in the version with pneumatic wheels.

Technical features:

• • Performance: 4000 - 50000 l/h.
  • Three-phase motor 5.5 Hp (4 kw).
  • Integrated frequency inverter 5.5 Hp (4 kw).
  • Rotating shaft: 50 - 600 rpm.
  • Electric motor with gear reducer.
  • Electrical panel with Loc-Rem selector.
  • Remote control with 15-metre cable.
  • Stainless steel trolley with 4 wheels.
  • Stainless steel-graphite-NBR mechanical seal.
  • Food grade rubber impeller type “NBSB”.

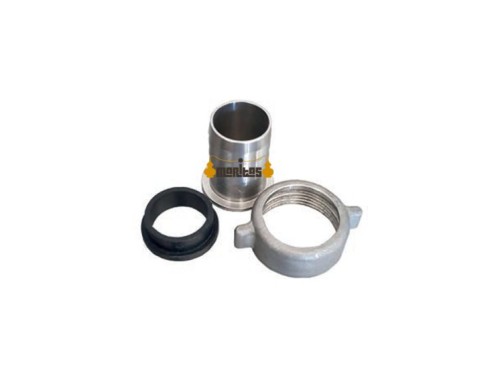

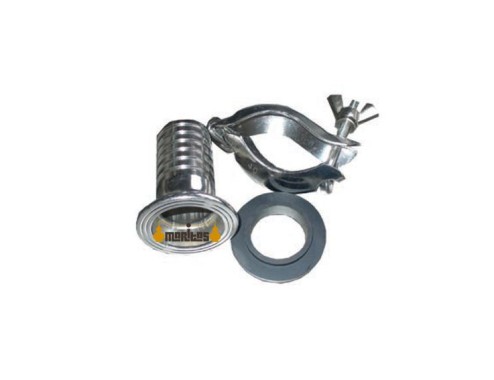

  • 2 rubber supports, with clamp and gasket included in the version with ¾” BSP or garolla connections.
  • For hot liquids above 60°C, request EPDM impeller.
  • Dimensions: 1020x590x900 mm.
  • Weight: 92 kg.

Optional accessories:

• • Remote control by radio frequency (cod.7050), price 535 euros.
  • 24V output for connection of pressure switch or external level probes (cod.7027), price 60 euros.
  • "STOP Kit" dry stop system with mechanical sensor for liquid presence (additional to the CE electrical system with 24V NC output, cod.7047), price 320 euros.
  • Timer for programming work breaks (cod.7054), price 310 euros.
  • Stainless steel electrical panel (cod.7053), price 310 euros.

It is important to mention that we manufacture this model on request, with a manufacturing time of 25-30 days.
