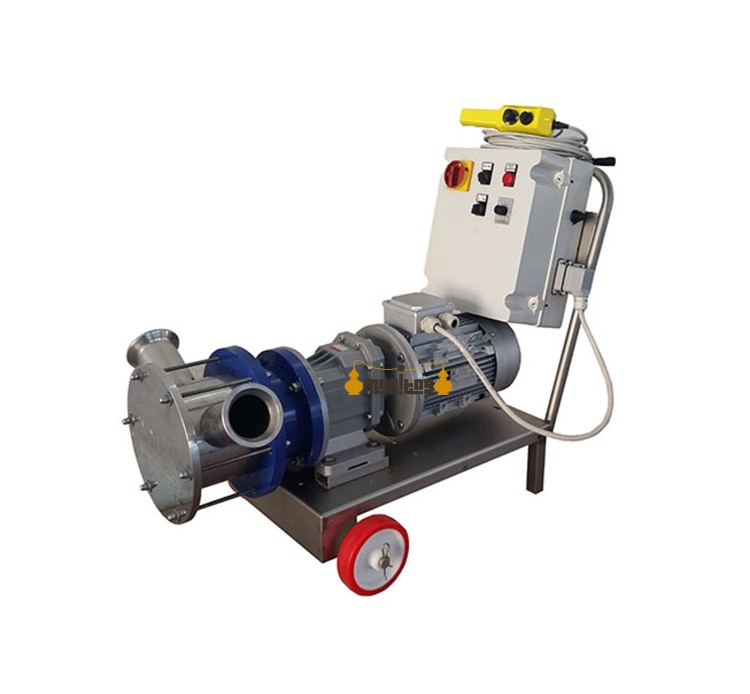

Pump with Electronic Inverter EURO 40

The Pump with Electronic Inverter EURO 40 with the electrical panel separated from the motor body, guarantees the safety of the electronic components and facilitates cleaning and maintenance operations.

Self-priming pump made entirely of AISI 304 stainless steel, connected to an electronic system equipped with an electronic inverter, which allows the pump rotation speed to be varied from 0 to 1000 rpm.

The unique feature of this pump is the use of a servo-ventilated electric motor, which, in addition to allowing the pump to stop at 0 rpm, allows prolonged use at low speeds, without causing overheating or breakdowns of the electric motor, and without the need to equip the machinery with other mechanical reduction systems.

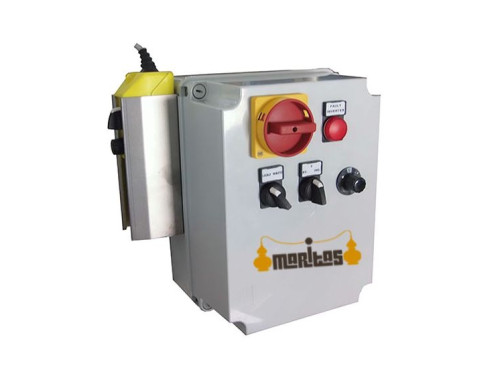

The electrical panel is supplied separate from the motor body, connected with quick connectors to ensure the safety of the electronic components and facilitate cleaning and maintenance operations.

A 15-metre cable control is included as standard, with the possibility of varying the speed, the direction of rotation and turning off the pump.

On request, the trolley can be supplied in the version with pneumatic wheels.

Technical characteristics:

• • Performance: 0 - 11100 l/h.
  • Three-phase motor 1.5 Hp (1.1 kw).
  • Integrated frequency inverter 3 Hp (2.2 kw).
  • Rotating shaft: 0 - 1000 rpm.
  • Electric motor with forced ventilation.
  • Electrical panel with Loc-Rem selector.
  • Remote control with 15-meter cable.
  • Stainless steel trolley with 4 wheels.
  • Stainless steel-graphite-NBR mechanical seal.
  • Food grade rubber impeller type “NBSB”.

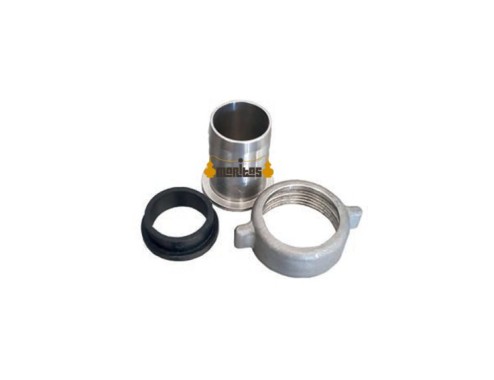

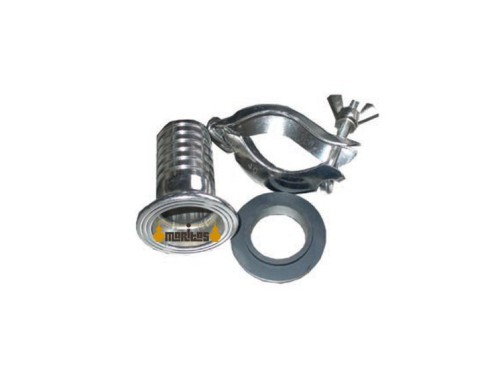

  • 2 rubber supports, with clamp and gasket included in the version with garolla or BSP ¾” connections.
  • For hot liquids above 60°C, request EPDM impeller.
  • Dimensions: 1020x560x900 mm.
  • Weight: 36 kg.

Optional accessories:

• • Optional accessories:
  • Remote control by radio frequency (cod.7050), price 535 euros.
  • 24V output for connection of pressure switch or external level probes (cod.7027), price 60 euros.
  • "STOP Kit" dry stop system with mechanical sensor for liquid presence (additional to the CE electrical system with 24V NC output, cod.7047), price 260 euros.
  • Timer for programming work breaks (cod.7054), price 310 euros.
  • Stainless steel electrical panel (cod.7053), price 310 euros.

It is important to mention that we manufacture this model on request, with a manufacturing time of 25-30 days.
