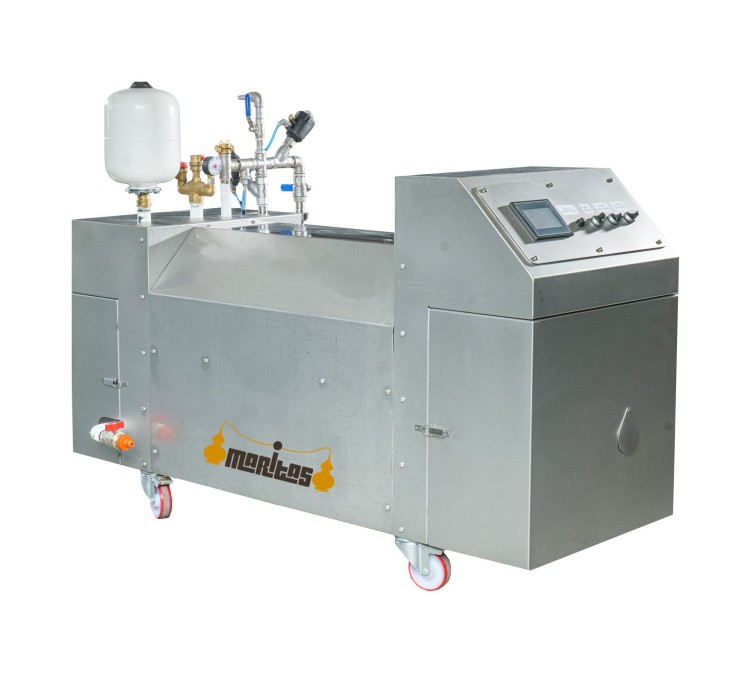

Pasteurizer 500 liters Diesel

The Pasteurizer 500 liter is an efficient and versatile device designed to ensure optimal heat exchange.

Pasteurizer for fruit juices and low-viscosity liquids, with integrated diesel burner.

The heat exchange system is provided through a coaxial tube submerged in a tank of heated water.

The automatic control system allows for setting a water temperature and controlling the liquid outlet temperature.

Most bacteria subjected to high temperatures are eliminated, allowing the liquid to be preserved for longer.

A bypass circuit returns the product to the heat exchanger if the outlet temperature is not as required or if an external signal opens the return valve (e.g., the fill float).

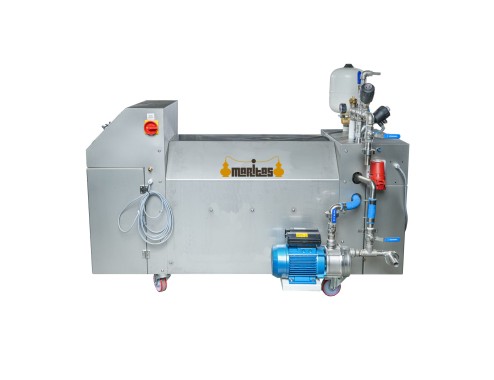

The system is equipped with a pump with an EPDM rubber impeller, a diesel burner, a steel support platform, and a control panel for temperature regulation.

Technical specifications:

• • Fuel output: 500 l/h at 80°C.
  • Diesel consumption: 8 kg/h.
  • Burner capacity: 95 kW.
  • Power supply: 230 V/50 Hz single-phase.
  • Power: 1 kW.
  • DIN 25 liquid inlet and outlet connection.
  • Pump with EPDM impeller.
  • Oil burner (natural gas burner available upon request).
  • Stainless steel support platform.
  • Panel with automatic temperature control.
  • Dimensions: 2050 x 750 x 1170 mm.

Please note that this model is made to order, so the estimated production time is 20-25 days.
