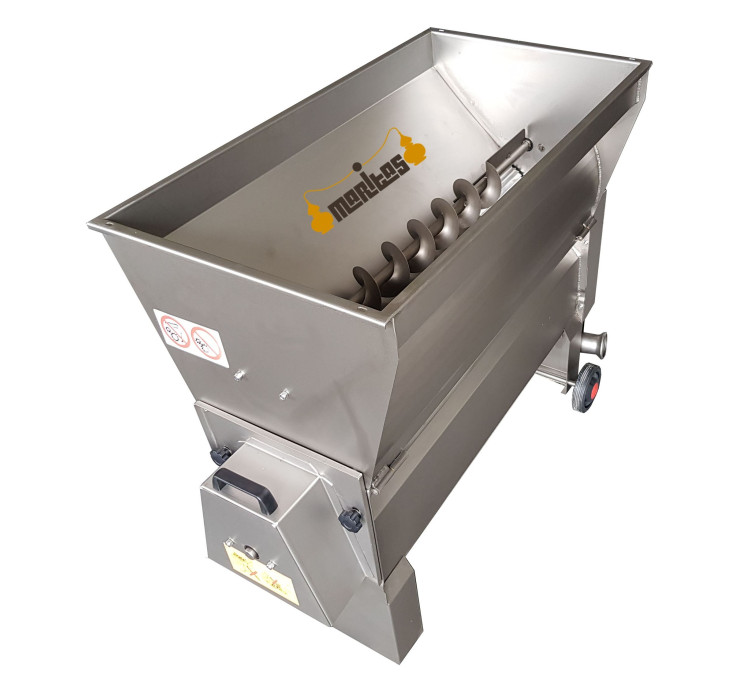

JOLLY 30 Prickly Pear and Pomegranate Sheller with EURO 50 Pump

The JOLLY 30 Prickly Pear Sheller for pomegranates and prickly pears with Euro 50 pump is a high-quality machine built entirely in AISI 304 stainless steel.

The pomegranate and prickly pear sheller is equipped with food-grade aluminium rollers and includes a EURO 50 volumetric pump with trolley.

For easy cleaning, the machine can be fully opened both at the front and in the central part, with the possibility of removing the internal separation net.

Technical characteristics:

• • Output: 3000 kg/h.
  • 1.8 kW three-phase motor with fixed speed.
  • Rotating shaft: 500 rpm.
  • Dimensions: 1280x900x900 mm.
  • Weight: 150 kg.
  • AISI 304 stainless steel structure.
  • Separation net with 8 mm perforation, length 1000 mm.
  • Coated stainless steel separation shaft.
  • Loading height from the ground 900 mm.
  • Aluminium rollers.
  • EURO 50 volumetric pump installed on a stainless steel trolley separate from the machine body, with a 2 Hp (1.5 kW) three-phase motor.
  • DIN 50 output connections.
  • CE electrical system complete with emergency stop.
  • Anti-accident stainless steel box.

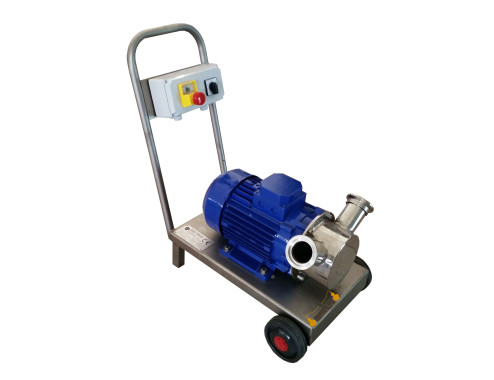

Technical characteristics of the EURO 50 pump with trolley:

• • Output: 10200 l/hour.
  • 2 Hp (1.5 kw) three-phase motor.
  • Rotating shaft: 700 rpm.
  • CE control panel separate from the motor with rotation inverter and 2-metre long cable.
  • Stainless steel/graphite/Nbr mechanical seal.
  • Stainless steel trolley.
  • AISI 304 stainless steel shaft.
  • “NBSB” type food grade rubber impeller.
  • For hot liquids above 60°C, request EPDM impeller.
  • DIN 50 outlet connections.
  • Dimensions: 900x360x530 mm.
  • Weight: 27 kg.

Optional accessories:

• • Electronic inverter (code 9172), price 1300 euros.

It is important to note that this model is made to order and the manufacturing time is approximately 20-25 days.
