Automatic Motorized Hopper

We present the Automatic Motorized Hopper, a high quality product designed to facilitate the transport of the product processed by shellers and crushers.

Solution designed for the transport of semi-solid products, resulting from both shellers, crushers (for example, for the processing of pomegranates and prickly pears) and mill crushing processes (for example M100).

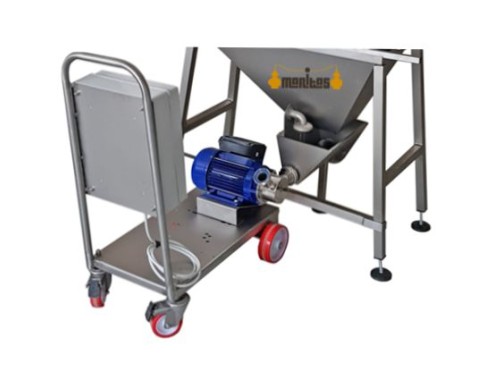

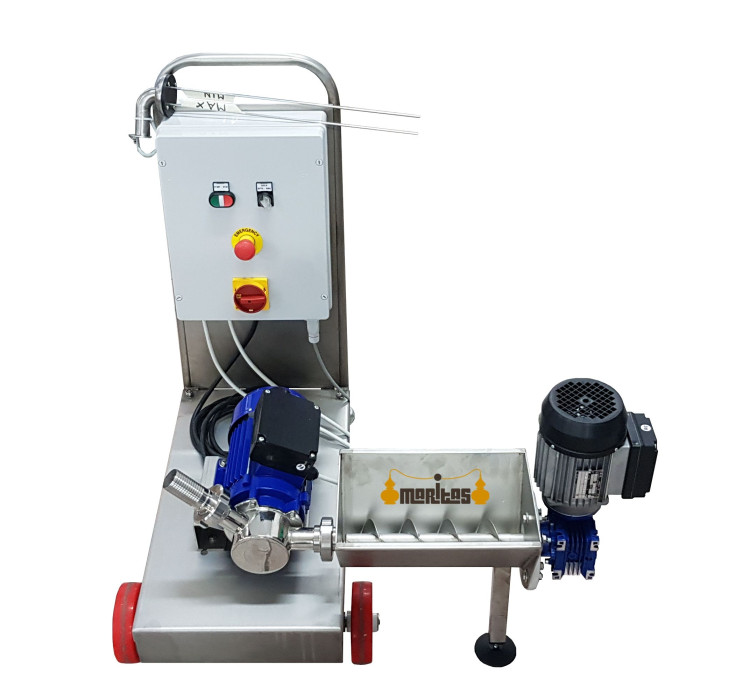

The machine is composed of a stainless steel motorized tank with a central auger, and equipped with a support foot.

It includes a complete EURO 40 volumetric pump with rubber impeller, with a stainless steel carriage.

The two components are connected by a DIN 40 connector.

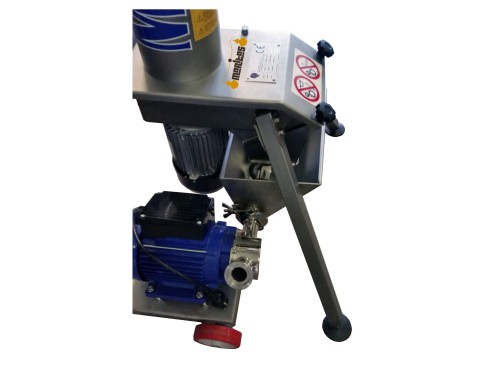

The size of the tank allows it to be installed directly under the prickly pear sheller and the M100 mill.

A single electrical panel allows the simultaneous start-up of both machines.

Technical characteristics (cod.9928):

• • Performance: 2000 kg/h.
  • EURO 40 model pump with rotation inverter.
  • Three-phase motor: 2.5 Hp (1.87 kW).
  • Motorized tank with 0.37kw motor.
  • Automatic operation probes.
  • Tank capacity: 10 liters.
  • DIN 40 connection.
  • Stainless steel cart.
  • Hopper dimensions: 240x320x370 mm
  • Overall dimensions: 520x1200x930 mm
  • Weight: 45 kg.

Optional accessories:

• • Large version of the tank, with a capacity of 60 litres (code 9929), price 450 euros.

It is important to note that this model is produced to order, so the estimated production time is 20-25 days.
