5L COMPLETE Multifunction Still

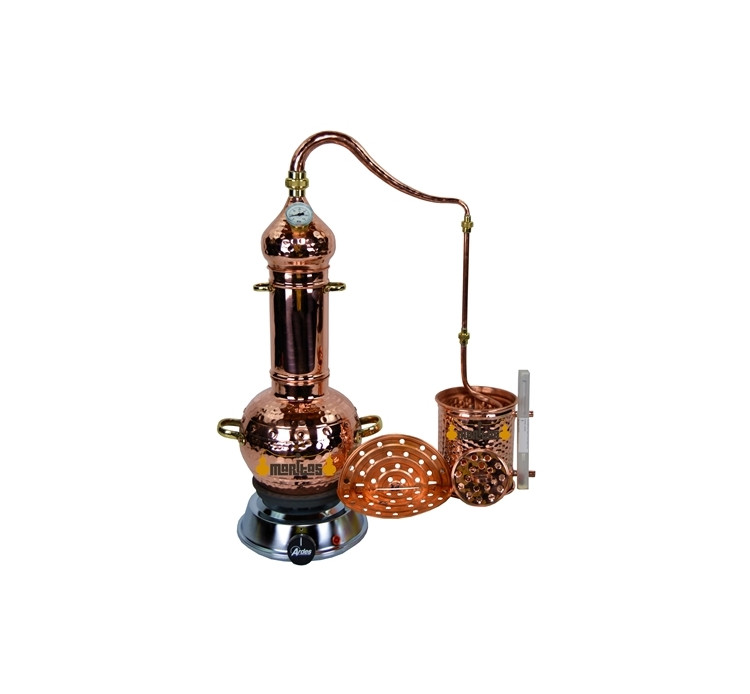

⚗️ 5 L COMPLETE Multifunction Still

✨ Elegance, tradition and versatility for your distillation projects

The 5 L COMPLETE Multifunction Still is a handcrafted model designed for both alcoholic distillation and aromatic distillation. Its complete equipment includes the accessories needed to facilitate process control and work with greater convenience and precision.

⚒️ Handcrafted construction and quality materials

Made from 0.7 mm copper sheet with a hammered finish, it combines the traditional appearance of a still with a functional, robust and durable construction.

Its polished brass handles and nuts, together with the riveted joints, provide strength and durability while maintaining its distinctive handcrafted character.

🍷 Alcoholic distillation

The boiler has a capacity of 5 litres and offers an estimated yield of 10–15% of its capacity.

Under these conditions, it can produce approximately 500–750 ml of distillate per distillation, depending on the process used.

It is a suitable option for experimenting with spirits, homemade liqueurs and other aromatic distillates in small quantities.

🌿 Aromatic distillation

Its multifunctional design also allows you to work with plants and flowers to produce hydrosols, essential oils and natural aromas.

🌱 Plant or flower capacity: 250–1000 g per distillation.

🔄 Distillations per load: allows 3 to 5 distillations per load, emptying and reloading the column when the plants have exhausted their oils.

💧 Hydrosol production: 3–4 L per session.

🌼 Pure essential oil production: 12–15 ml per session.

This capacity allows you to work with different plants and flowers to produce hydrosols, natural essential oils and homemade aromas through a controlled, handcrafted process.

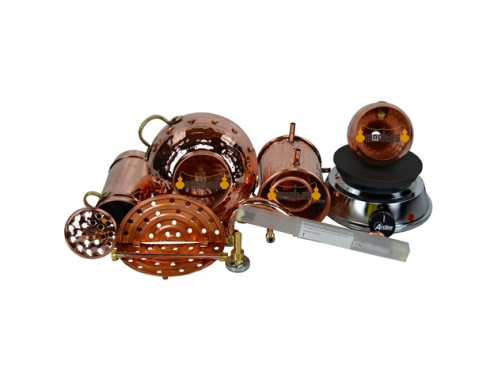

⚙️ COMPLETE equipment included

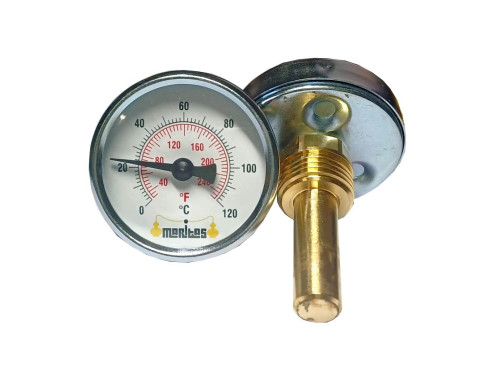

🌡️ Medium 0–120 °C thermometer: integrated into the still for easy temperature monitoring during distillation.

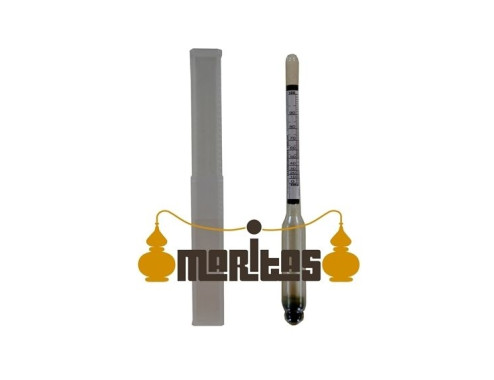

🥃 Small 0–100° alcoholmeter: for measuring the alcohol content of your distillates.

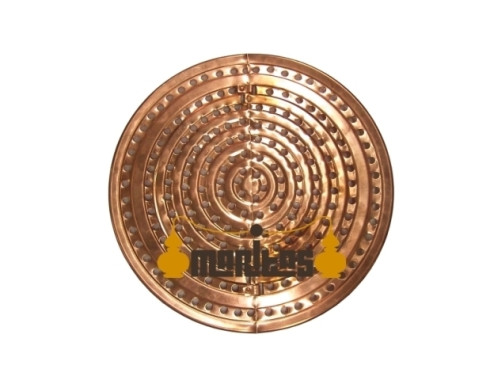

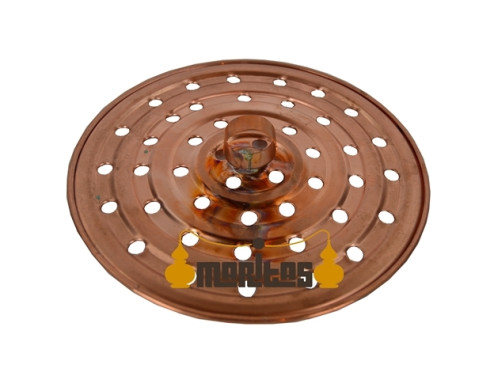

🔥 Column separation grid: helps prevent blockages during the distillation process.

🧱 Boiler separation grid: prevents solid products from sticking to the bottom of the boiler.

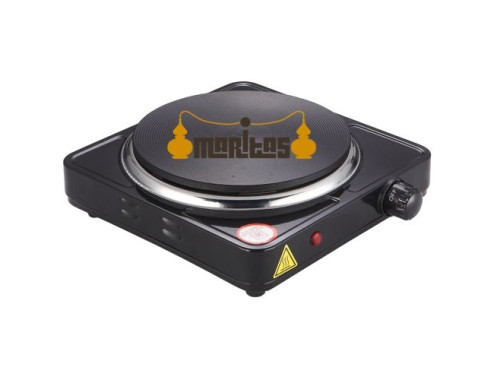

⚡ Electric hot plate: included and adapted to the size and capacity of the still.

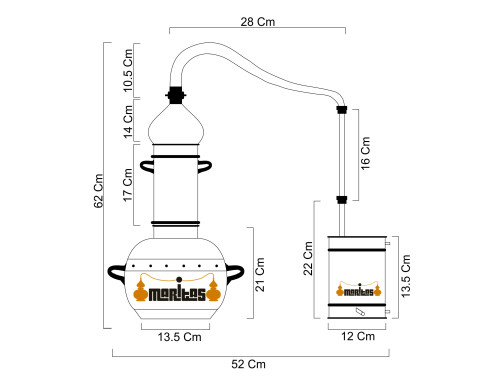

📋 Technical data

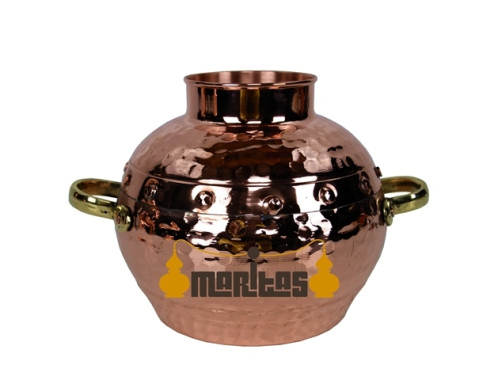

🔹 Boiler capacity: 5 L

🔨 Material: 0.7 mm copper

✨ Finish: hammered copper and polished brass

⚒️ Construction: riveted joints

🍷 Estimated alcohol distillation yield: 10–15% of capacity

💧 Approximate alcohol distillation output: 500–750 ml per distillation

🌿 Plant or flower capacity: 250–1000 g per distillation

🔄 Distillations per load: 3–5

💧 Hydrosol production: 3–4 L per session

🌼 Pure essential oil production: 12–15 ml per session

🌡️ Integrated thermometer: 0–120 °C

🥃 Alcoholmeter: 0–100°

🔥 Column separation grid: included

🧱 Boiler separation grid: included

⚡ Electric hot plate: included and adapted to the still's size and capacity

🌿 Ideal for

🍷 Alcoholic distillation of spirits, homemade liqueurs and other distilled beverages.

🌸 Aromatic distillation of plants and flowers for producing hydrosols and essential oils.

🎯 Users looking for a complete setup with accessories for monitoring, measuring and facilitating different stages of the distillation process.

🏡 Beginners and experienced distillers who value precision, practicality and handcrafted construction.
