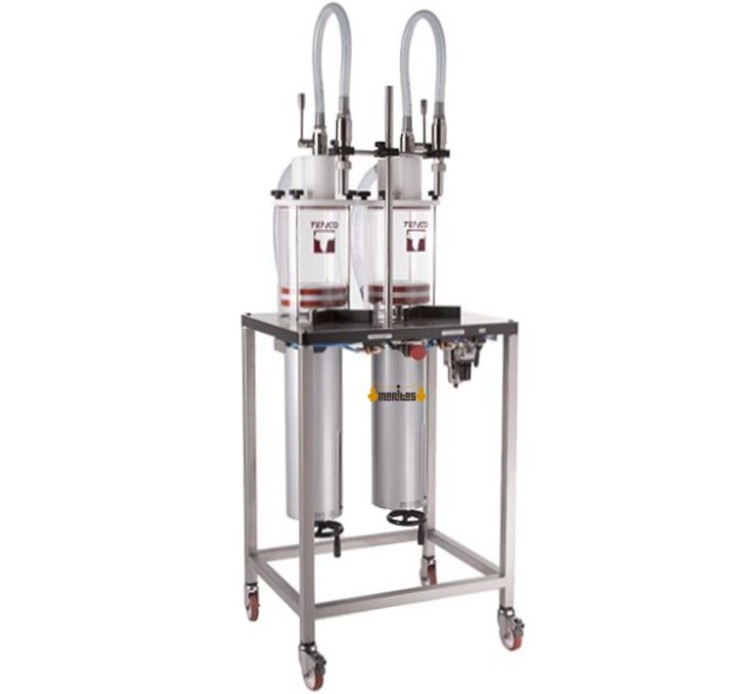

Fluelite with 2 Cylinders and 1/2" Shut-Off Valve (100-2000 ml)

The Fluelite filler is a vertical volumetric dosing machine with two methacrylate cylinders and a filling range from 100 to 2000 ml, perfect for packaging various liquid products with an exact quantity.

It can be used to package liquids in tinplate cans, plastic bottles, PET, glass, or other materials.

For hot products, alcohol-based products, or solvents, the Fluelite dosing machine with stainless steel cylinders is recommended.

For dosing products containing hypochlorite, chlorine, and hydrochloric acid, the Fluelite volumetric dispenser with PVC components is also available.

It is not possible to dose dense products such as sauces, yogurt, or honey with Fluelite; in this case, a volumetric dispenser from the Doselite range is required.

This machine is made with materials and seals suitable for contact with food and various chemicals.

Their trolley structure makes them easily movable to meet all needs.

The product to be packaged can be taken directly from a storage container located below.

The compressed air supply allows the machine to automatically aspirate and dose the amount of product selected by the operator, drip-free, and without the need for external pumps.

Technical specifications:

• • Production: 750 2-liter containers/h.
  • Dosing capacity: 100 to 2000 ml.
  • Power supply: compressed air.
  • Free air consumption: 140 liters/minute.
  • Pressure: 6 bar
  • Methacrylate cylinders: two dosing pistons that aspirate and dispense the selected amount of product.
  • 1/2" shut-off valve.
  • Dimensions: 610 x 490 x 1441 mm.
  • Weight: 70 kg.

Accessories available upon request:

• • 1″ ø4 dosing nozzle.
  • 1″ ø8 dosing nozzle.
  • 1″ ø10 dosing nozzle.
  • 1″ ø14 dosing nozzle.
  • 1″ ø16 dosing nozzle.
  • 1″ ø20 dosing nozzle.
  • 1″ ø25 dosing nozzle.
  • 2-way vertical anti-drip valve 1/2” 5–3 mm.
  • 2-way vertical anti-drip valve 1/2” 7–5 mm.
  • 2-way vertical anti-drip valve 1/2” 10–7 mm.
  • 2-way vertical anti-drip valve 1/2” 17–12 mm.
  • 1" 2-way vertical non-drip valve, 14–8 mm.
  • 1" 2-way vertical non-drip valve, 18–10 mm.
  • 1" 2-way vertical non-drip valve, 21–13 mm.
  • 1" 2-way vertical non-drip valve, 25–15 mm.
  • Silicone seal kit.
  • PTFE seal kit.

This machine is fully customizable to suit the specific product and/or bottle being packaged.

Accessories such as anti-drip devices and special immersion spouts for sparkling products can be added.

Its design and technical features make it an efficient and versatile tool.
