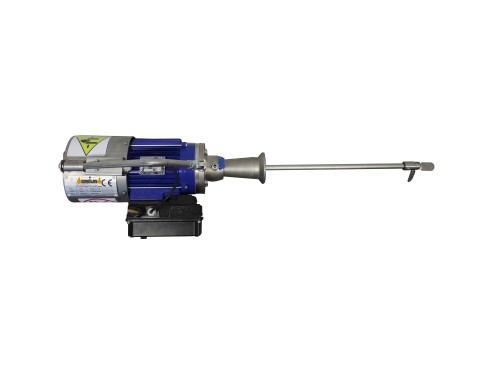

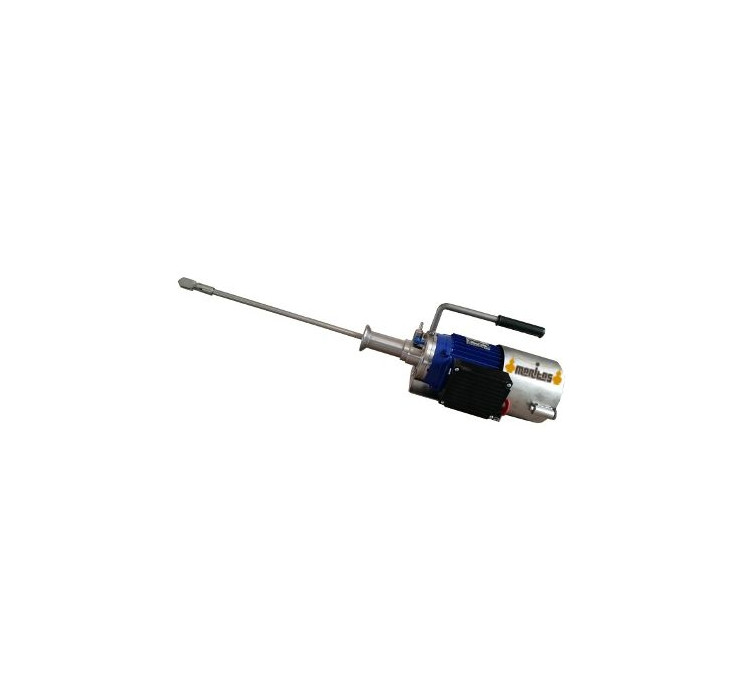

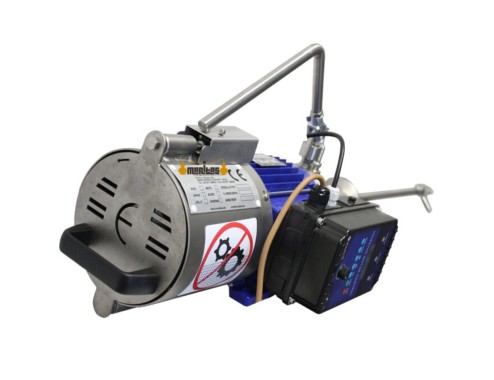

MIX 100 Agitator with Single-Phase Electronic Variable Speed ​​Drive

The MIX 100 Removable Overhead Agitator with a single-phase electronic variable speed drive is an innovative solution that facilitates the installation and disassembly of the machine directly on full tanks, using full-bore valves, without loss of liquid and without the use of tools.

A stainless steel tap is supplied as standard for purging the connection chamber and for dosing products directly through the agitator.

The connection fitting for the tank valve can be made to customer specifications (DIN Garolla, 11851, Triclover, etc.) with a minimum bore of 34 mm, as well as the type of mechanical seal installed (stainless steel/graphite as standard).

Technical specifications:

• • Three-phase 1.5 HP (1.1 kW) electric motor.

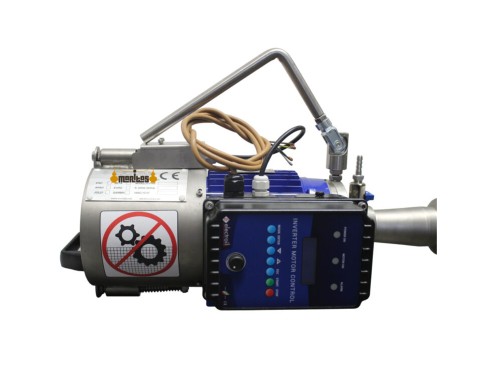

  • Single-phase electronic variator.
  • 1400 rpm rotating shaft.
  • Maximum tank capacity: 30,000 liters.
  • Electrical system with emergency stop, 24V circuit, and transformer.
  • Stainless steel-graphite-NBR mechanical seal, maximum 12 BAR.
  • Retractable shaft in AISI 304 stainless steel, 48 cm long.
  • Automatically opening folding propeller, 15 cm wide.
  • One stainless steel dosing/ventilation valve.
  • The connection accessory must be specified when ordering (minimum internal valve clearance: 36 mm).
  • Dimensions: 230 x 250 x 960 mm.
  • Weight: 20 kg.

Optional add-ons:

• • Stainless steel support with telescopic height adjustment (valve center height 30-140 cm) (cod.876), price 415 euros.
  • Tilt system for the agitator support for installation on inclined valves (only available with the stainless steel support) (cod.879), price 60 euros.
  • EURO 20 product dosing pump with 0.5 Hp motor, rubber impeller and installed on the stainless steel support (cod.874), price 398 euros.
  • Mechanical seal (cod.7023), price 105 euros.
  • Timer (requires stainless steel support for installation) (cod.7056), price 400 euros.

Please note that this product is made to order, with an estimated manufacturing time of 25-30 days.
