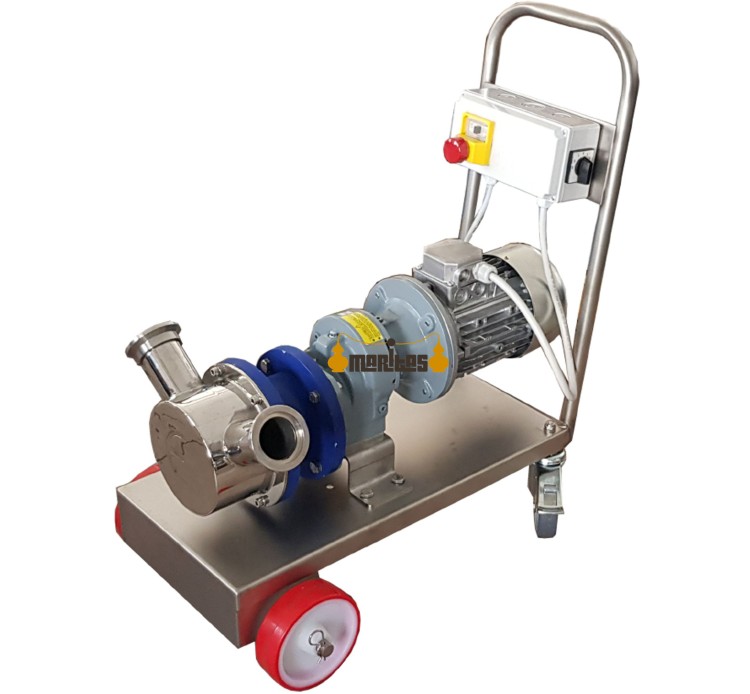

2 Speed Pump EURO 60

Self-priming pump made entirely of AISI 304 stainless steel, supplied with a stainless steel carriage and speed gear reduction.

Using an aluminium support with shaft and a gear reducer, it is possible to use the pump at a reduced number of revolutions and adapt it to different needs (for example filtration and decantation).

The use of a double-speed motor represents an economical solution for having a pump with multiple uses.

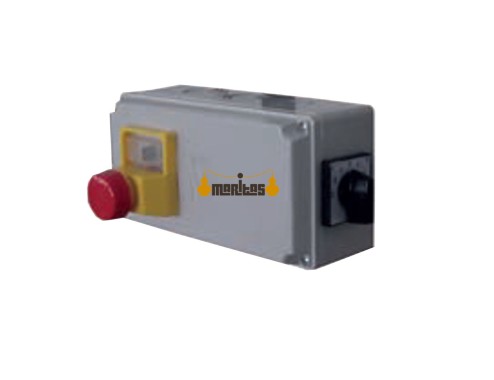

The speed variation is managed by the control panel, with controls with speed and direction selector.

Technical characteristics:

• • Performance: 15000-24000 l/h.
  • Three-phase motor of 3-4 Hp (2.2-3 kW).
  • Rotating shaft: 400-800 rpm.
  • 2 speeds.
  • Gear reducer.
  • Electrical system with rotation inverter and motor protection.
  • Stainless steel trolley.
  • Stainless steel-graphite-NBR mechanical seal.
  • AISI 304 stainless steel shaft.
  • Food grade rubber impeller type “NBSB”.

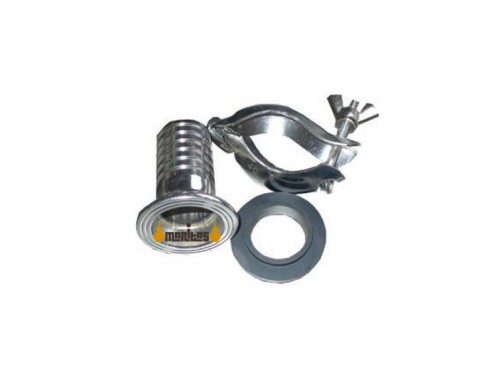

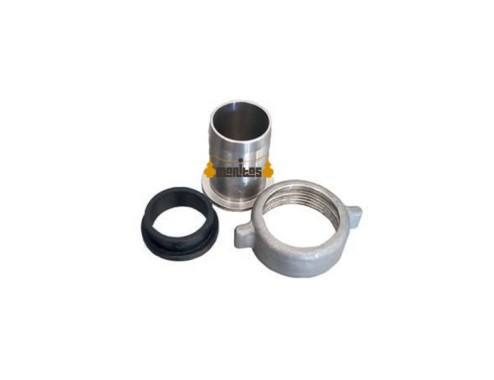

  • 2 rubber supports, with clamp and gasket included in the version with garolla or BSP ¾” connections.
  • For hot liquids above 60°C request EPDM impeller.
  • Dimensions: 810x410x650 mm.
  • Weight: 48 kg.

Optional accessories:

• • Optional accessories:
  • Bypass (cod.7045), price 128 euros.
  • Three-phase CE electrical system with 24V NC output, for connection of pressure switch or external probes (cod.7036), price 530 euros.
  • "Dry stop" STOP kit (additional to the three-phase CE electrical system with 24V NC output, cod.7047), price 270 euros.
  • Three-phase CE electrical system with timer (cod.7037), price 530 euros.
  • Three-phase CE electrical system with on/off control by remote control (cod.7042), price 910 euros.

The 2-speed pump EURO 60 is made to order, with an estimated manufacturing time of 25-30 days.
